Webhooks

Webhooks serve as automated messengers that enable instant communication between different web applications when specific events occur.

Robosym.ai supports webhooks seamlessly. Here's how it works with Robosym.ai:

Imagine a user interacts with an Robosym.ai chatbot and fills out a form. Here's what happens next:

1. When the user submits the form on the Robosym.ai chatbot, it triggers the captured_form.created webhook, alerting your website about the submission.
2. Your website receives crucial data about the submission through a notification sent by Robosym.ai.
3. Upon receiving this notification, your website seamlessly integrates the received data from Robosym.ai into its database or application.
4. Subsequently, your website processes the integrated data according to your preset business logic and workflows.

Additionally, Robosym.ai triggers webhooks for three key events:

*We will discuss each event in detail in the subsequent modules.

Now, let's delve into how you can integrate these webhooks on your Robosym.ai profile.

Integrating Webhooks

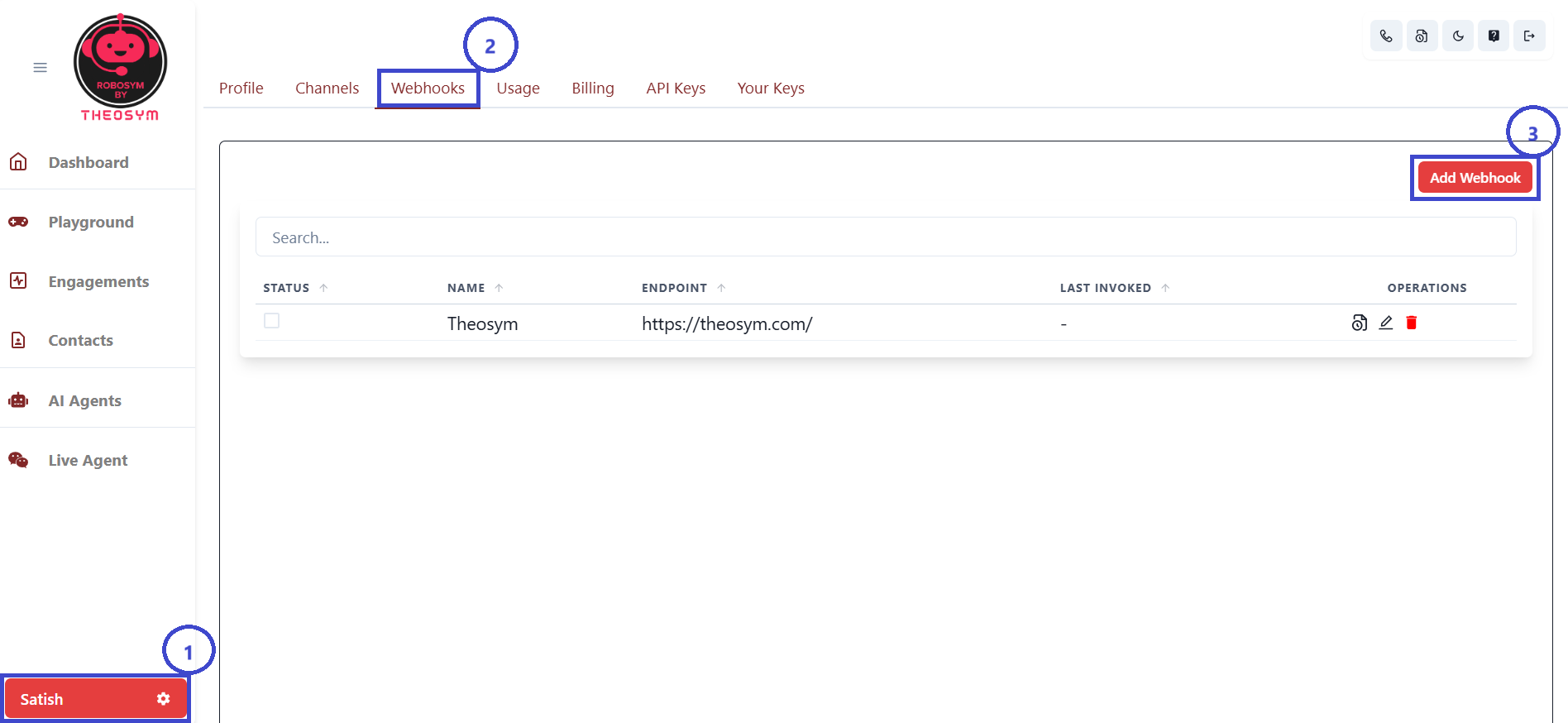

1. Navigate to your Robosym.ai profile and click on “Add a Webhook” under the Webhooks tab.

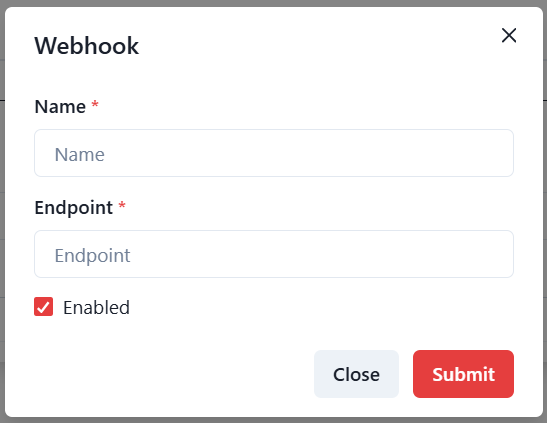

2.  Enter the name and endpoint where the webhook data will be sent. Click on “Submit.”

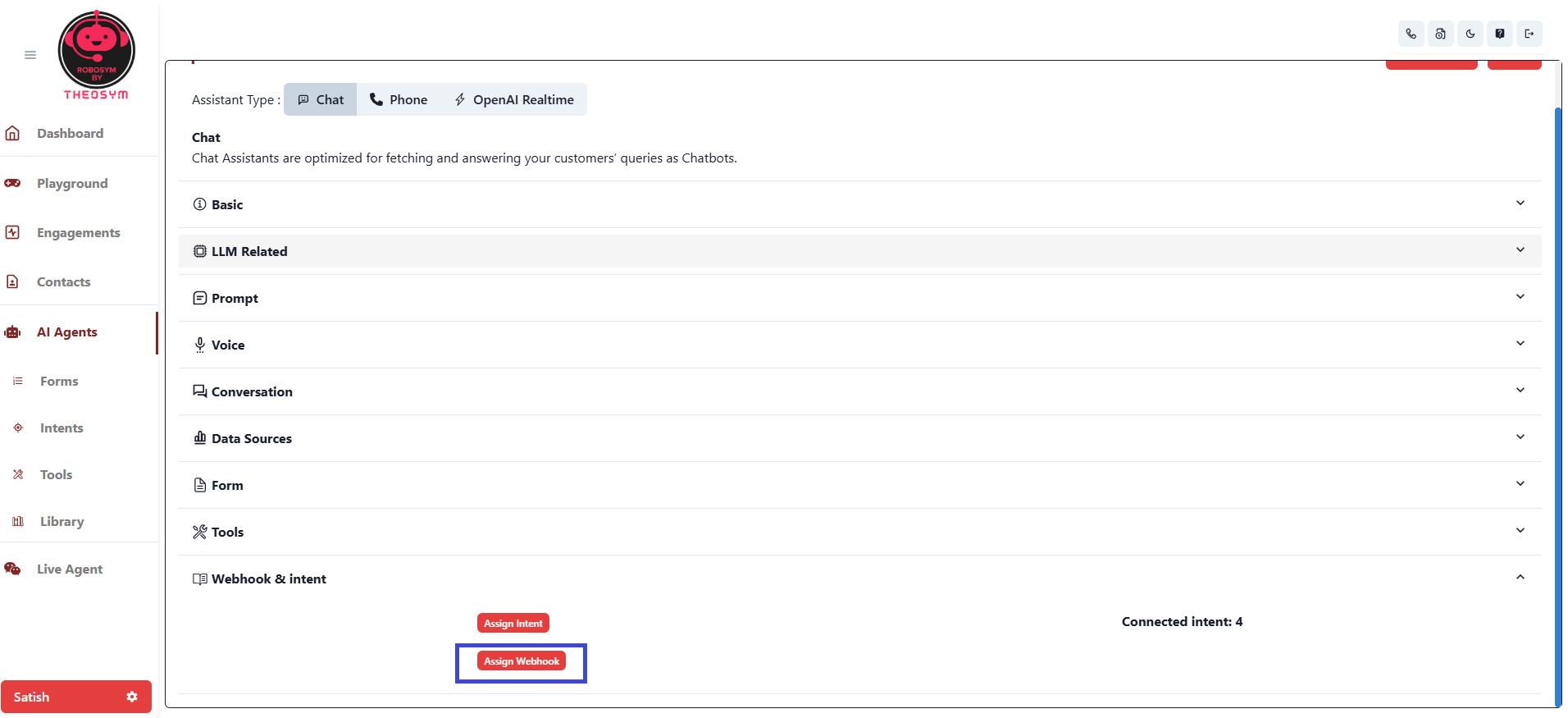

3. Now, to link your webhook to your assistant, click on “AI Agents” from the sidebar and navigate to the Assistants tab. Choose your desired assistant and click on the “Edit Assistant” button under the Operations tab.

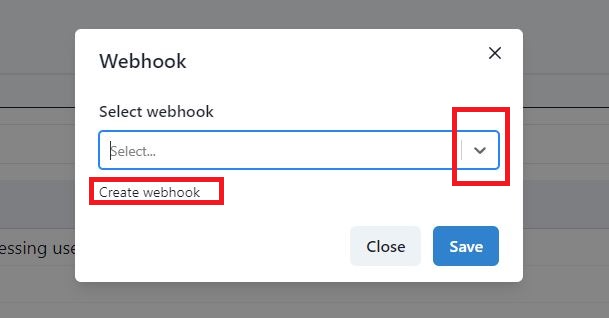

4. Select the webhook you just created by clicking on the drop-down menu, and click on "Save.”




   Alternatively, you can also create a new webhook by clicking on the “Create Webhook” button. In that case, you will be redirected to Step 1.









Configuring Webhooks for Different Events

       1. captured_form.created

This event is triggered when a user submits a form through the Robosym.ai chatbot or phone agents.

For instance, let’s say a user engages with an Robosym.ai chatbot and inquires about a product. In response, the Robosym.ai bot prompts the user to provide additional details by filling out a form. Once the user submits the form, the captured_form.created webhook is triggered. Robosym.ai then passes the captured form information to the URL specified by the customer as the webhook endpoint, facilitating seamless integration into the customer's system.

Each webhook request includes a body, which contains the following information:

{
  “id”: “018eb05e-7efd-7bef-a765-7bccbd9f39d9",
  “data”: {
    “form_id”: “018eaff3-67cb-7d86-bb5e-65c952c8dc2a”,
    “form_name”: “Algoscale Leads”,
    “widget_id”: “018cd9c9-a864-7de1-98c0-6478c74b9c2b”,
    “assistant_id”: “018cd9c8-e317-7079-accd-17be51784256”,
    “field_values”: {
      “name”: “Smith Stevens”,
      “email”: “smith@gmail.com”,
      “query”: “flask developer”
    },
    “conversation_id”: “018eb05d-cf6c-7631-8992-fd8377db4145",
    “captured_form_id”: “018eb05e-7177-7374-af12-66132614cb9f”
  },
  “event”: “capturedform.created”,
  “object”: “event”,
  “created_at”: “2024-04-05 22:26:08"
}

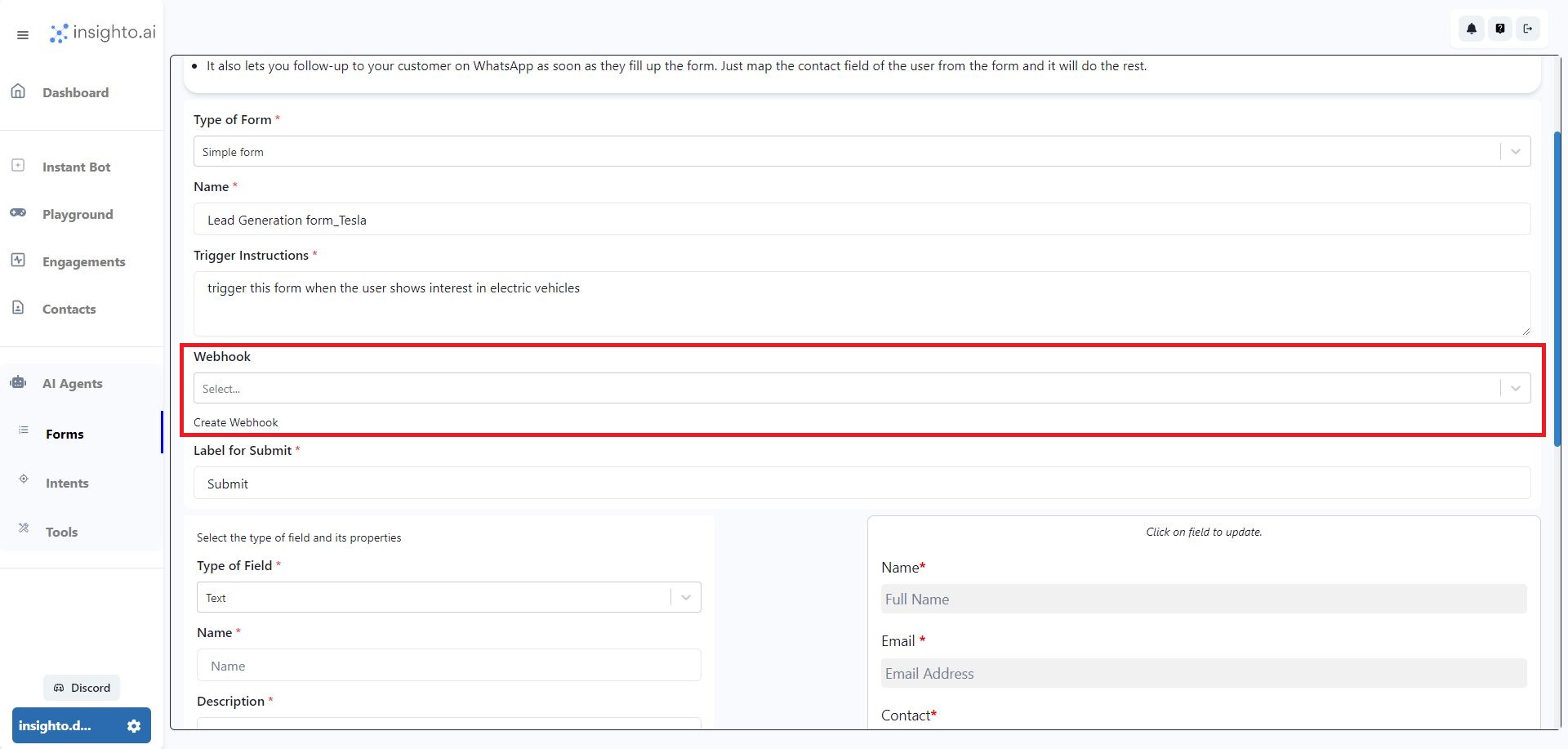

To configure this webhook, navigate to Forms under AI Agents to choose from existing webhooks or create a new one.

2. captured_intent.created

This event occurs when Robosym.ai successfully captures a user's intent during an interaction.

For instance, if a user engages with an Robosym.ai chatbot to book a hotel room and clearly expresses their intent, the captured_intent.created webhook is triggered. Robosym.ai then passes the captured intent data to the specified webhook endpoint URL, enabling seamless integration for actions like reservation confirmation or sending booking details to the user.

Each webhook request includes a body, which contains the following information:

{
  “id”: “012ec784-e78d-80c2-a729-101c148de8c2",
  “data”: {
    “intent_id”: “023eca5e-a584-1002-960d-4857d7d28c67”,
    “chat_count”: 2,
    “intent_name”: “SALES”,
    “device_type”: “mobile”,
    “widget_id”: “018eb656-5692-7a92-836b-80e2cd1eca56",
    “assistant_id”: “018eb657-5027-7a36-ad61-77e2bd4ec683",
    “conversation_id”: “019ec453-1017-2567-904d-ff39862b334"
  },
  “event”: “capturedintent.created”,
  “object”: “event”,
  “created_at”: “2024-04-10 18:16:50"
}

{
  “id”: “018ec93a-1393-7002-a528-199c149be8e3",
  “data”: {
    “widget_id”: “018eb657-e189-7219-960d-4535d7d24d99”,
    “chat_count”: 2,
    “contact_id”: “None”,
    “device_type”: “desktop”,
    “assistant_id”: “018eb657-5027-7a36-836b-77e2cd1ec683",
    “first_message”: “User: hi may i know how much is flu jab”,
    “conversation_id”: “018ec933-3037-7469-80d8-ff393043b889"
  },
  “event”: “conversation.closed”,
  “object”: “event”,
  “created_at”: “2024-04-10 18:16:50"
}
